Hanging Wheel
Series ZHUTAO.
The ZHUTAO Sliding Door Hanging Wheel Series perfectly integrates silent wear-resistant materials with ultimate structural mechanics. Engineered with premium SUS 304 stainless steel and high-polymer nylon silent bearings, equipped with dual-way hydraulic buffering dampers, it easily manages heavy tempered glass sliding doors, solid wood barn doors, and high-end hotel partition systems.

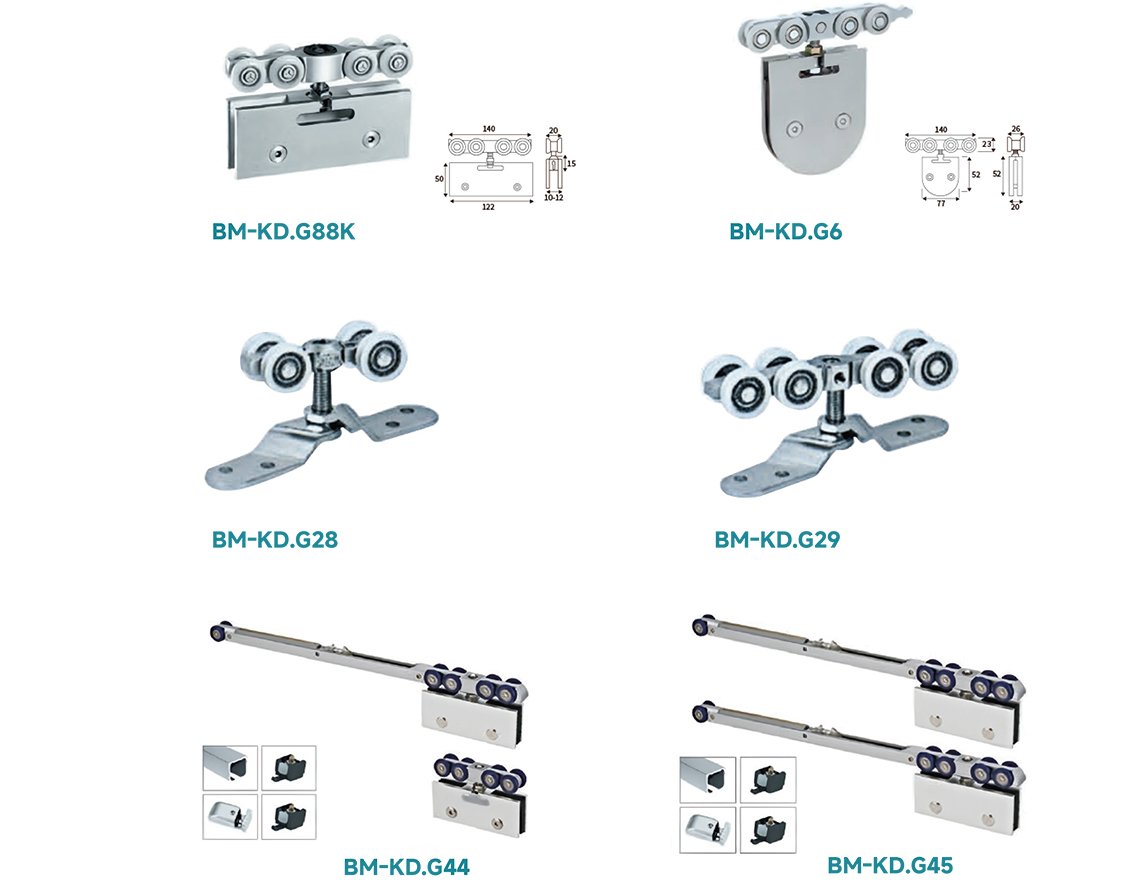

BM-KD Hanging Wheel Portfolio
8-Wheel Carriage, Height-Adjustable Hanger, Dampers & Tracks
Surface Customization
Support custom hole spacing for glass clamps based on door thickness, and custom connection flanges for specific wood doors. Tracks, finishes, and covers can be customized in brushed/mirror stainless steel, sandblasted black, titanium PVD, and other premium surface treatments.
OEM / ODM Support
Provide complete hardware mold development, precise aluminum alloy track extrusion, and laser-etched brand logo services. Support heavy-duty engineering structural calculations (100kg-300kg shear fatigue strength) to ensure structural safety.
B2B Global Trade
Direct source factory supply, guaranteeing highly competitive pricing and premium quality. Support mixed batch customization, global container consolidations, and provide full factory inspection reports, ISO9001, and CE certification documents.
Technical Resource Center
Acquire high-precision mounting hole dimensions, door clearance calculations, track cross-section drawings, and damper sliding door travel adjustment specifications.
Digital Resources
Request AutoCAD 2D Joint Drawings
Providing high-precision layout drawings in .dwg and .rvt (BIM) formats for curtain wall engineers and hotel interior designers to reduce site installation time.
Contact Engineering Support TeamKey Hanging Wheel System Specifications
Select a model below to review precise internal blueprints and assembly specifications designed for high-load capacity, micro-level adjustability, and single/double-way hydraulic dampening rails.
Select Hanging Wheel Model
BM-KD.G13 Details
Technical Specifications
- Manufacturing Material: SUS 304 Stainless Steel / POM Rollers
- Load Capacity: Single Door Load ≤ 120kg
- Door/Glass Thickness: 10mm - 12mm Tempered Glass
- Wheel Configuration: 8-Wheel Balanced Hanger Structure
- Fatigue Life: Tested & Guaranteed for 100,000 Cycles
Complete Sliding Rail & Accessory Systems
We provide not only heavy-duty silent hanging rollers, but also matching decorative track covers, anti-sway bottom guides, and limit stop dampers for a complete sliding system.
Features arc clamping design with 4 silent rollers, providing the most cost-effective and integrated solution for small to medium commercial shopfront glass doors.
Flat double-ear mounting base, providing ultimate load-bearing tensile strength for American barn doors or heavy solid wood doors in luxury villas.
Features heavy-duty hydraulic damper with reinforced spring mechanism to prevent rebound. Dual damper design ensures smooth and quiet closing both ways.
Works with hidden bottom tracks, using soft brushes and rubber sleeves to avoid direct glass-to-steel contact for completely quiet, anti-sway travel.
Wholesale Procurement Reference Table
The following table displays engineering procurement standards. Review glass clamp widths, maximum loads, and corresponding bearing roller diameters for convenient project ordering.
Heavy Industrial Manufacturing & Quality Inspection
With decades of engineering expertise in sliding rollers and guiding tracks, we supply world-class silent sliding solutions for commercial and residential developments.
Wholesale Trade Business Metrics
Mass production orders for standard or damped rollers generally take 15-25 business days. Customized tooling may extend the timeline.
MOQ of 500 pieces per style. Custom laser-engraved branding and project-specific anti-vibration packaging are available.
5-Year mechanical structure and soft-close function warranty under high-frequency commercial or public sliding usage.
