Patch Fitting
Series ZHUTAO.
The ZHUTAO Patch Fitting Series delivers world-class structural integrity for frameless commercial glass doors. Manufactured with reinforced aluminum or zinc-alloy internal cores and premium SS304/SS316 cover plates for architectural durability.

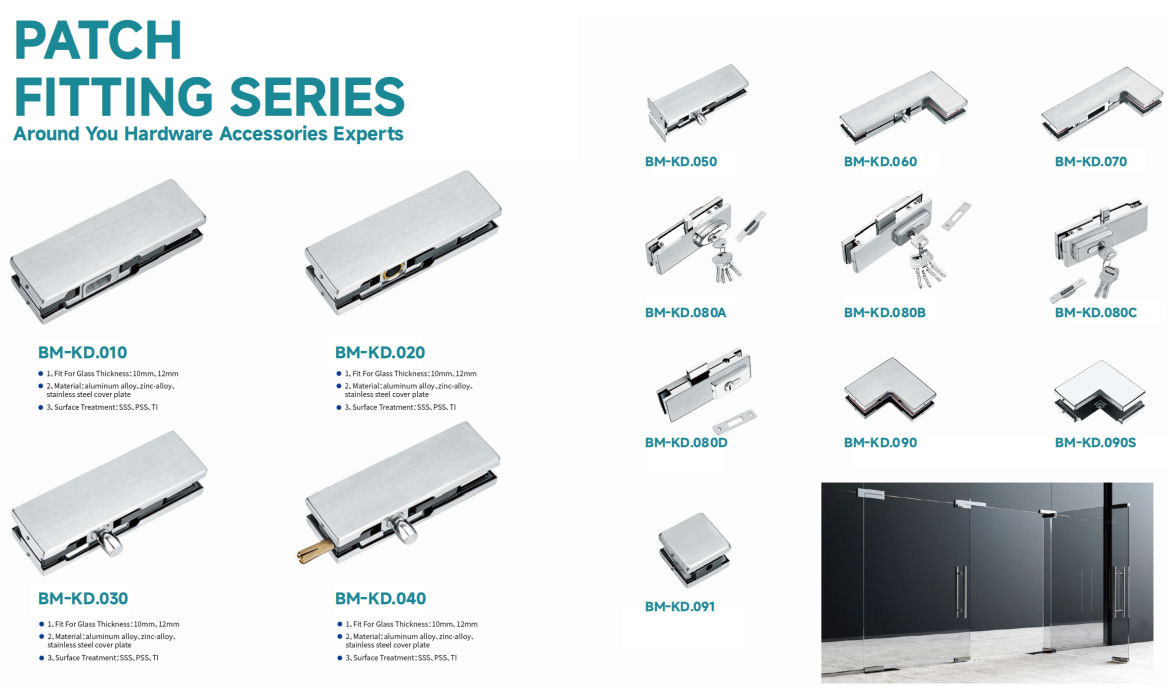

BM-KD Series Catalog
Full Range Clamping Systems
Customization Services
Bespoke sizing, architectural surface treatment, and precise corporate laser branding solutions.
OEM / ODM Policy
Streamlined manufacturing agreements, specialized mold production, and worldwide brand protection.
Wholesale Inquiry
Competitive direct factory pricing structure and robust supply chain solutions for global distributors.
Technical Resource Center
Access the complete ZHUTAO Patch Fitting Series Technical Catalog. Review structural blueprints, dimensional tolerances, and installation guidelines for your global project fulfillment.
Fulfillment Assets
Request CAD Files
Request AutoCAD (.dwg) or SolidWorks 3D models of components to import into your site drawings.
Contact Engineering TeamCore Patch Fitting Series
Explore professional specifications for our primary glass clamping assemblies. Engineered for precise fitment, aesthetic symmetry, and high-cycle mechanical endurance.
Select Fitting Assembly
BM-KD.010 Details
Technical Specifications
- Glass Thickness: 10mm, 12mm
- Structure Material: Aluminum & Zinc Core
- Cover Plates: Stainless Steel Cover
- Available Finishes: SSS, PSS, TI
- Load Compatibility: High Load Resistance
Extended Connector & Lock Line
The complete suite of connectors, overpanel accessories, glass clamps, and patch locks required for complex architectural framing.
Designed as an architectural upper transom pivot point. Engineered for perfectly balanced horizontal axis swing.
Overpanel connector fitting equipped with dynamic pivot pin insertion mechanism to link transom directly to sidelight.
Equipped with structural fin connection bracket for massive, high-height glass walls requiring secondary rear deflection support.
High-security patch locks featuring options 080A (double key), 080B (thumbturn cylinder), 080C (profile strike), and 080D (keep plate).
90-Degree L-shape glass-to-wall connectors and glass-to-glass stabilizing blocks for modular corner entrance systems.
Compact, minimalist architectural spacer clamp. Secures single glass panels directly to walls or flat structural profiles.
Technical Spec Sheet
Comprehensive quick-reference table outlining materials, compatible thicknesses, and standard finishes for high-performance architectural integration.
Bespoke Engineering Solutions
We offer precise dimensional customization, customized logos, laser engraving, and custom packaging to meet the stringent branding requirements of global distributors.
Ordering Parameters
15-25 Business Days for Standard or Customized Port Consignments.
500 units per category for customized branding or wholesale direct factory pricing.
5-Year mechanical integrity & structural finish warranty under commercial usage.
